Overlay hinge ATM XS-155 H0 hydraulic (165)
Leave feedback on the product
Product code: 36359
Zadzwoń i zamów
Opis

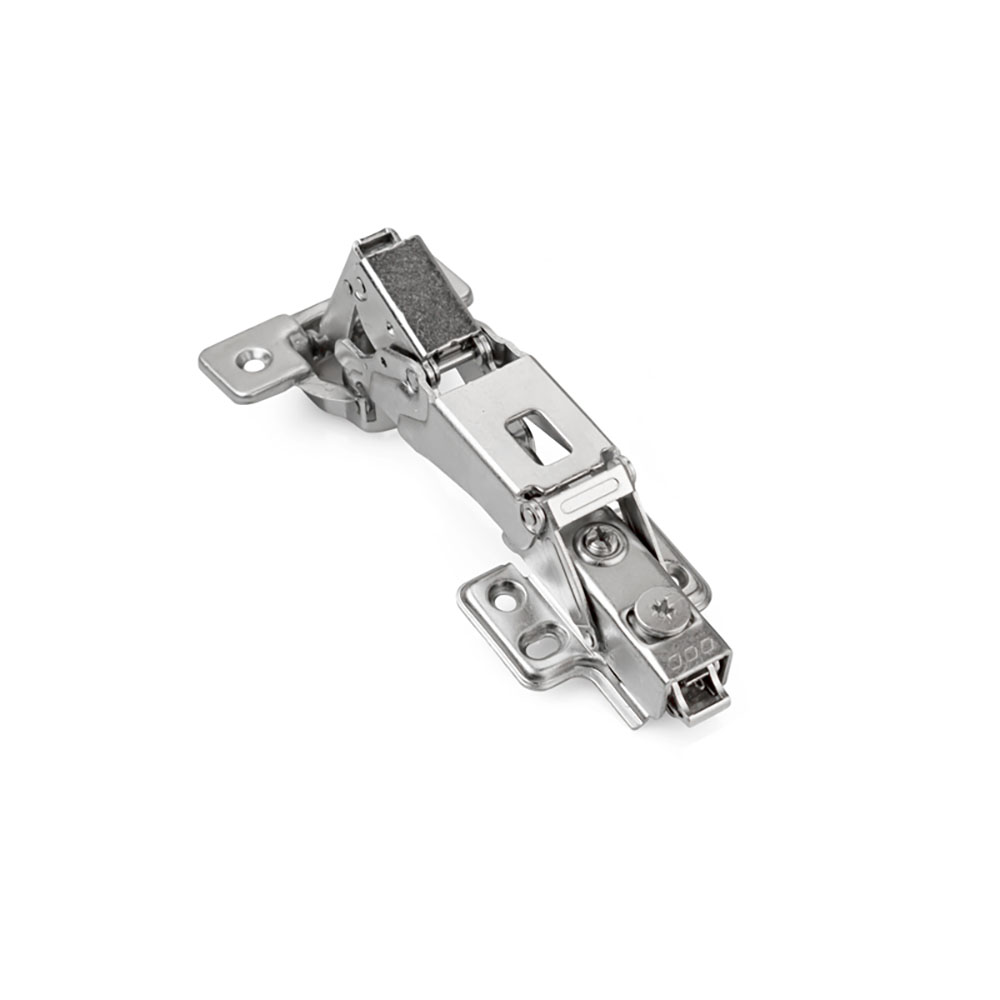

Hydraulic overlay furniture hinge (⌀ 35 mm) XS-155 (opening angle 155°) with CLIP-ON H-0 mounting plate
ATM furniture accessories - fittings tailored to your furniture
Product features:
✔ Overlay hinge
Overlay hinges are used to mount cabinet doors that overlap the cabinet body. When closed, the doors completely cover the edge of the cabinet body.
✔ Smooth door opening
A distinctive feature of the XS series is smooth and light movement throughout the entire opening and closing cycle. The neutral movement ensures even door opening (eliminates door flapping).
✔ Wide 155° opening angle, for boards up to 24 mm thick
The 155° opening angle allows for convenient use of the furniture, providing full access to the cabinet’s contents even in hard-to-reach places such as corners. The hinge is designed for installation in boards up to 24 mm thick.
✔ Soft-close system
Hinges from the XS series are equipped with the SoftClose system, which minimizes noise and prevents door slamming.
✔ CLIP-ON H-0 mounting plate
The CLIP-ON mounting plate enables quick and easy installation and removal of the cabinet door. The “click-on” mechanism significantly speeds up the process, allowing for tool-free attaching and detaching of doors.
✔ Certified for 50,000 cycles
Hinges from the XS series come with a quality guarantee and reliable performance for up to 50,000 cycles.
✔ Made of nickel-plated steel
Made of nickel-plated steel, the hinge is highly resistant to damage and corrosion.
Technical specifications:
- ☛ Brand: ATM
- ☛ Model: XS-155
- ☛ Opening angle: 155°
- ☛ Cup diameter: 35 mm
- ☛ Cup hole spacing: 45 mm
- ☛ Material: Nickel-plated steel

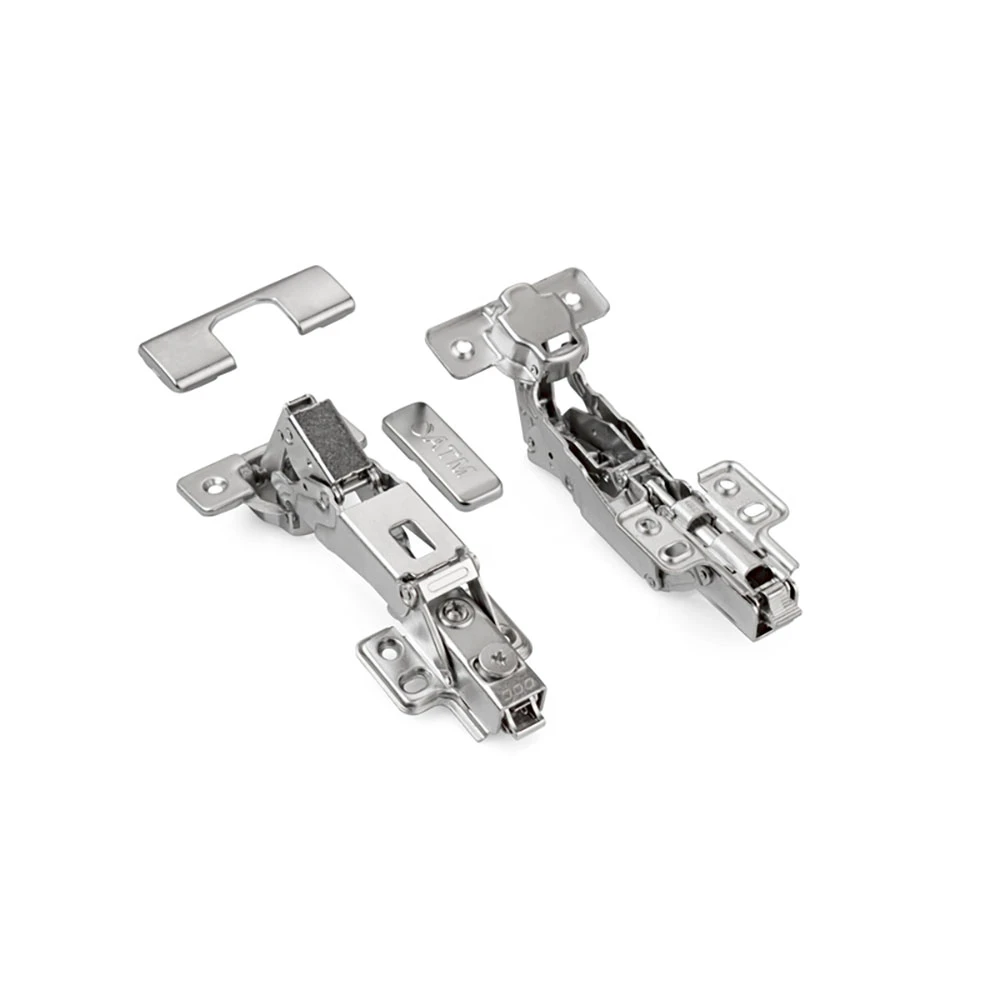

Set includes:
- Overlay hinge XS-155 - 1 piece
- CLIP-ON H-0 mounting plate - 1 piece
Fittings tailored to your furniture
By choosing ATM products, our customers can be sure that the accessories will perfectly meet their needs. We offer a wide range of furniture accessories that are not only functional but also aesthetically crafted, making them easy to adapt to any interior style. Choosing our products means investing in quality and durability. We invite you to explore our full range of products.
