Shelf support ATM MS-307 fi10*L150
Leave feedback on the product
Product code: 36052
Zadzwoń i zamów
Opis

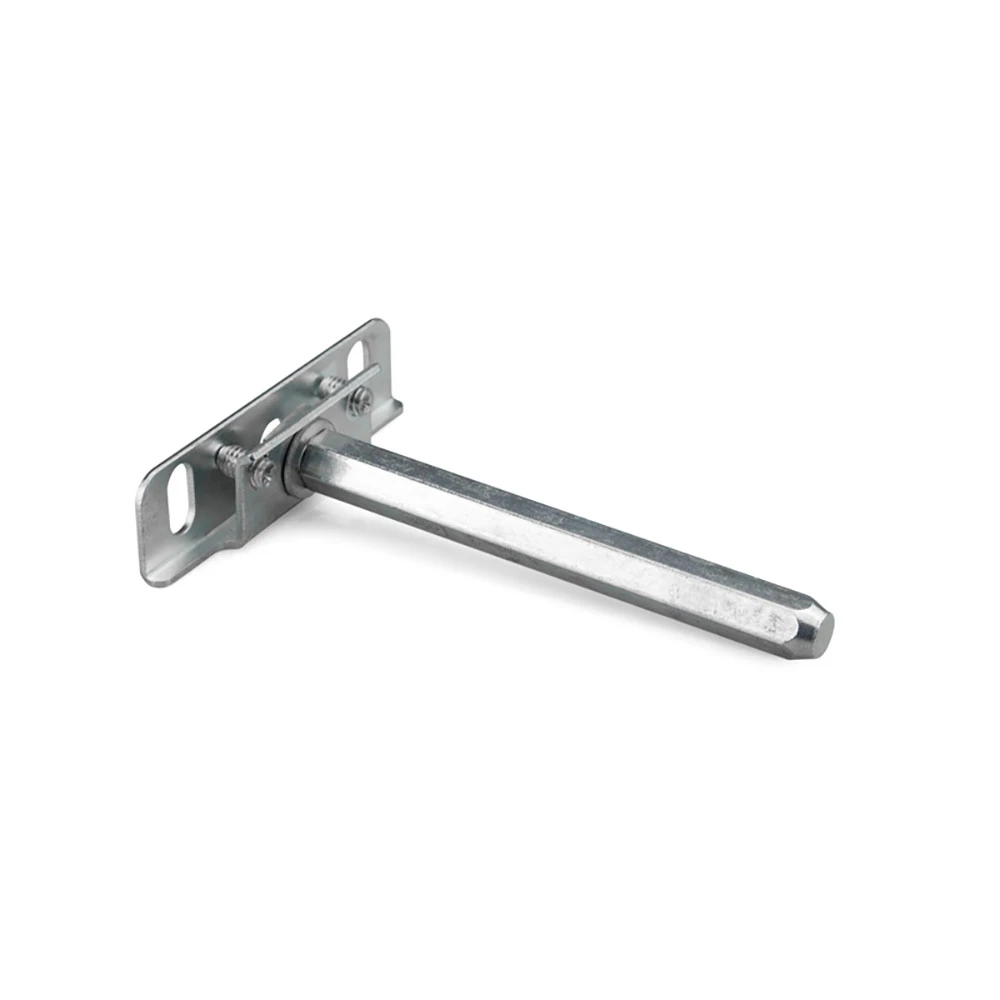

Floating shelf bracket MS-307 L-150 with ±4 mm horizontal adjustment, for 24 mm boards - galvanized steel
ATM furniture accessories - fittings tailored to your furniture
Product features:
✔ Concealed installation - modern aesthetics
The MS-307 bracket allows for shelf installation without visible supports, ensuring a clean, modern interior look. Ideal for contemporary and minimalist arrangements where clean lines without protruding elements are key.
✔ Universal mounting for different wall types
Suitable for installation on any type of wall. The MS-307 is recommended for 24 mm thick shelves with milling for the bracket and mounting plate.
⚠ Remember to account for the depth of the mounting plate to fully recess the support inside the shelf.
✔ Installation in a board with ⌀10 mm hole
The bracket is designed for shelves with a 10 mm diameter hole. It should be hammered into the hole so that the shelf rests securely on it and doesn’t slide off.
✔ Horizontal adjustment ±4 mm
The MS-307 bracket, unlike most on the market, allows for shelf adjustment in the horizontal plane.
✔ Galvanized steel
Made of galvanized steel, the concealed bracket offers durability and resistance to load.

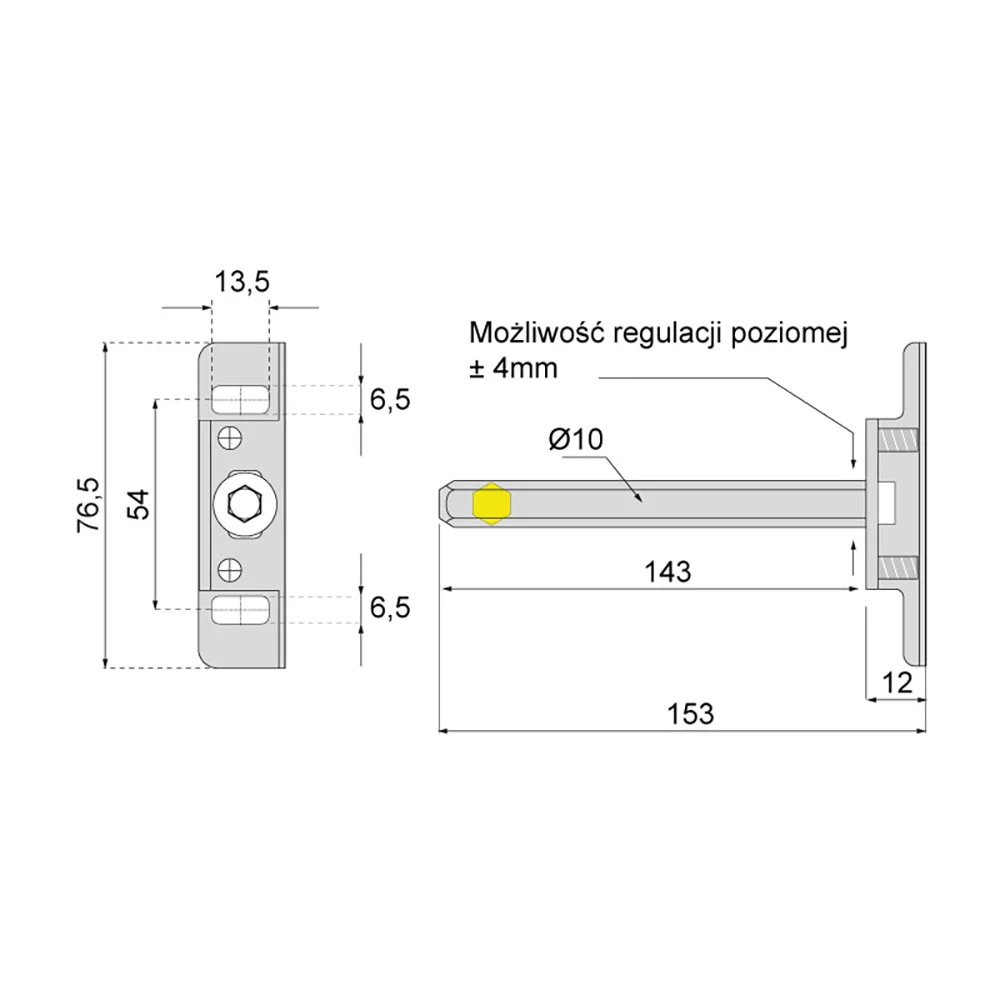

Technical data:
- ☛ Brand: ATM
- ☛ Model: MS-307
- ☛ Rod diameter: 10 mm
- ☛ Rod length: 143 mm
- ☛ Total length: 153 mm
- ☛ Horizontal adjustment: ±4 mm
- ☛ Material: Galvanized steel
Set includes:
- Floating shelf bracket MS-307 - 1 piece
Fittings tailored to your furniture
By choosing ATM brand products, our customers can be confident that the accessories are perfectly suited to their needs. We offer a wide range of furniture accessories that are not only functional but also beautifully crafted, making them easy to adapt to any interior style. By selecting our products, you are investing in superior quality and craftsmanship. Discover our full range of products today!
